How To Use Mini ACDP Replace BMW FEM/BDC Module
WhatsApp+8618275708814
https://wa.me/message/A5CJL2NAVLTMK1
You will need
2-ACDP Module 2 FEM/BDC Module
3-IF FEM can not be read anymore you also need ISN module
Recommend ACDP-2 BMW FEM package
https://www.miniacdp.com/productinfo/1407862.html
https://www.aliexpress.com/item/1005008699125024.html
ACDP-2 Package included
1 - ACDP-2 Basic Module
2 - ACDP-2 FEM/BDC Module with license A500
3 - ACDP-2 ISN Module with license A50D A50E A50B
4 - N20/13/N55/B38 Bench interface board
5- B48/B58 Bench interface board
ACDP-2 BMW FEM/BDC Package function
1.Add BMW FEM/BDC keys and all key lost on the bench 2.Replace FEM/BDC Module even original Module is damaged 4.Virgin FEM/BDC IMMO mileage
5.Read /write ISN from N20/13/N55/B38/B48/B58 DME
How to Replace BMW FEM/BDC module
Step 1 - Dismantle FEM or BDC Module from car
FEM/BDC Module is located at the lower part of the A column at the from passenger side
STEP 2
Take a photo of the fuse position of FEM/BDC Module before opening it ,and hook up FEM/BDC as diagram below

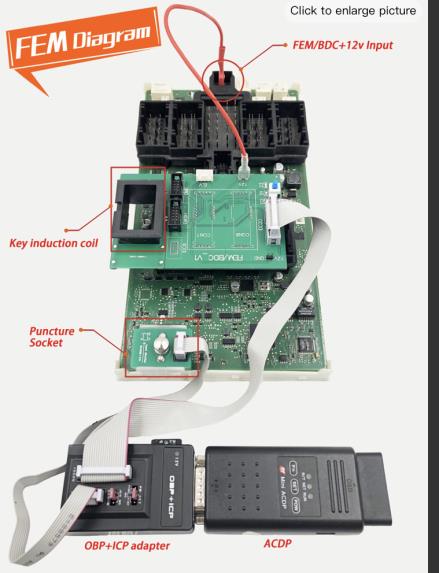

ACDP-1 FEM connection diagram
ACDP-1 BDC connection diagram （the different is puncture socket direction）
ACDP-2 FEM connection diagram (ACDP-2 no need OBP+ICP adapter)

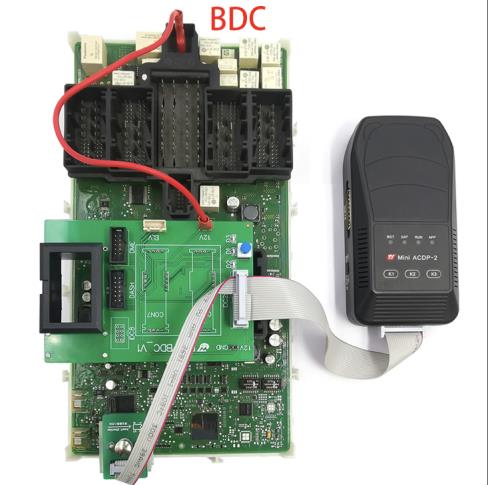

ACDP-2 BDC connection diagram (ACDP-2 no need OBP+ICP adapter)
There are two situation
First situation is Vehicle FEM / BDC Module still can be read
In this situation
On Original FEM/BDC Module

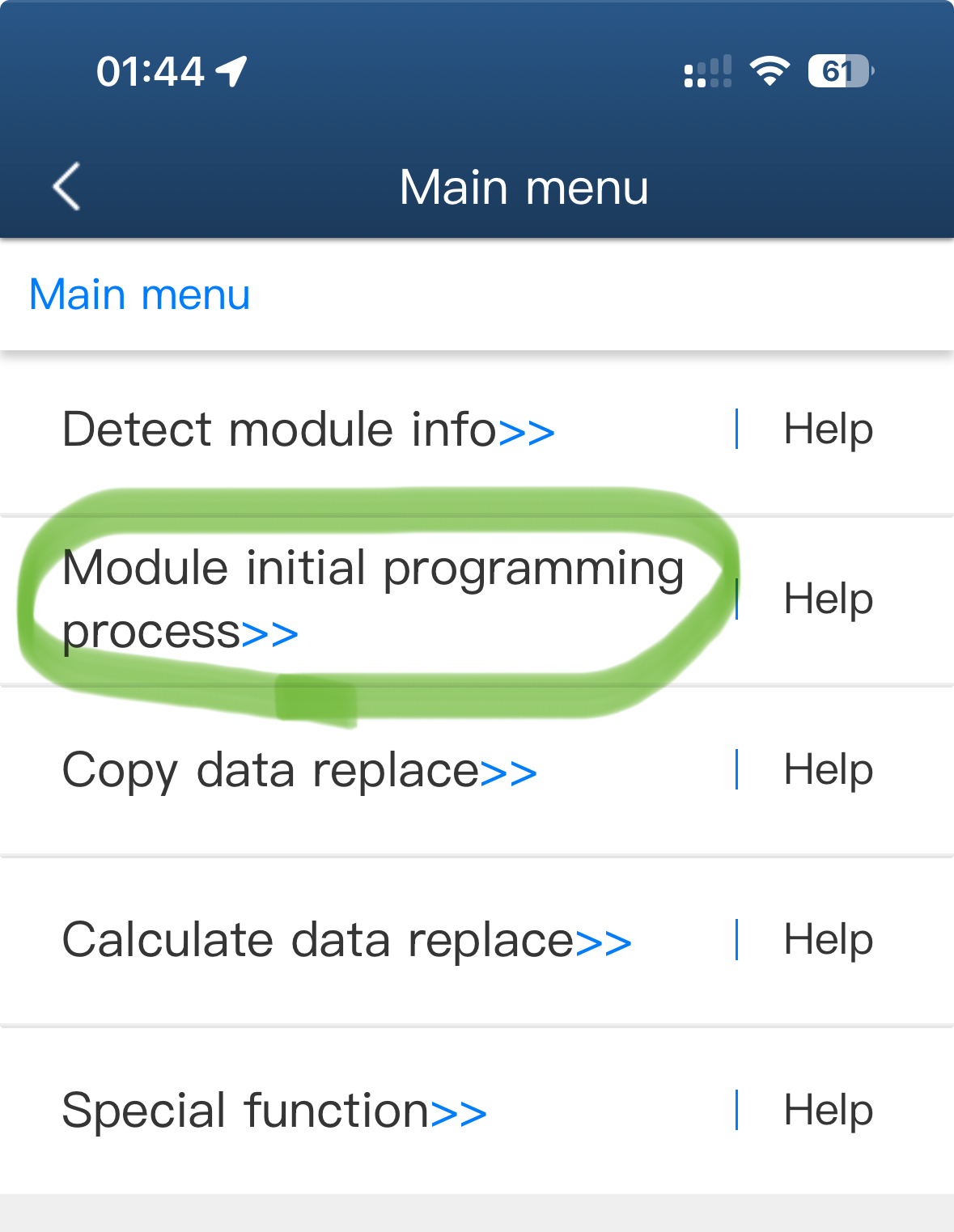

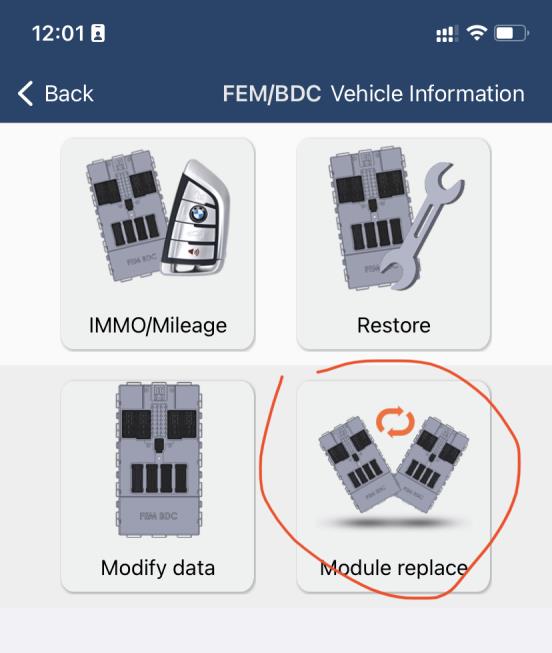

Click module replace
Step 1 -Identify Module info (it is very important to take screenshot save FEM information in this step)
Step 2 -Module initial program process

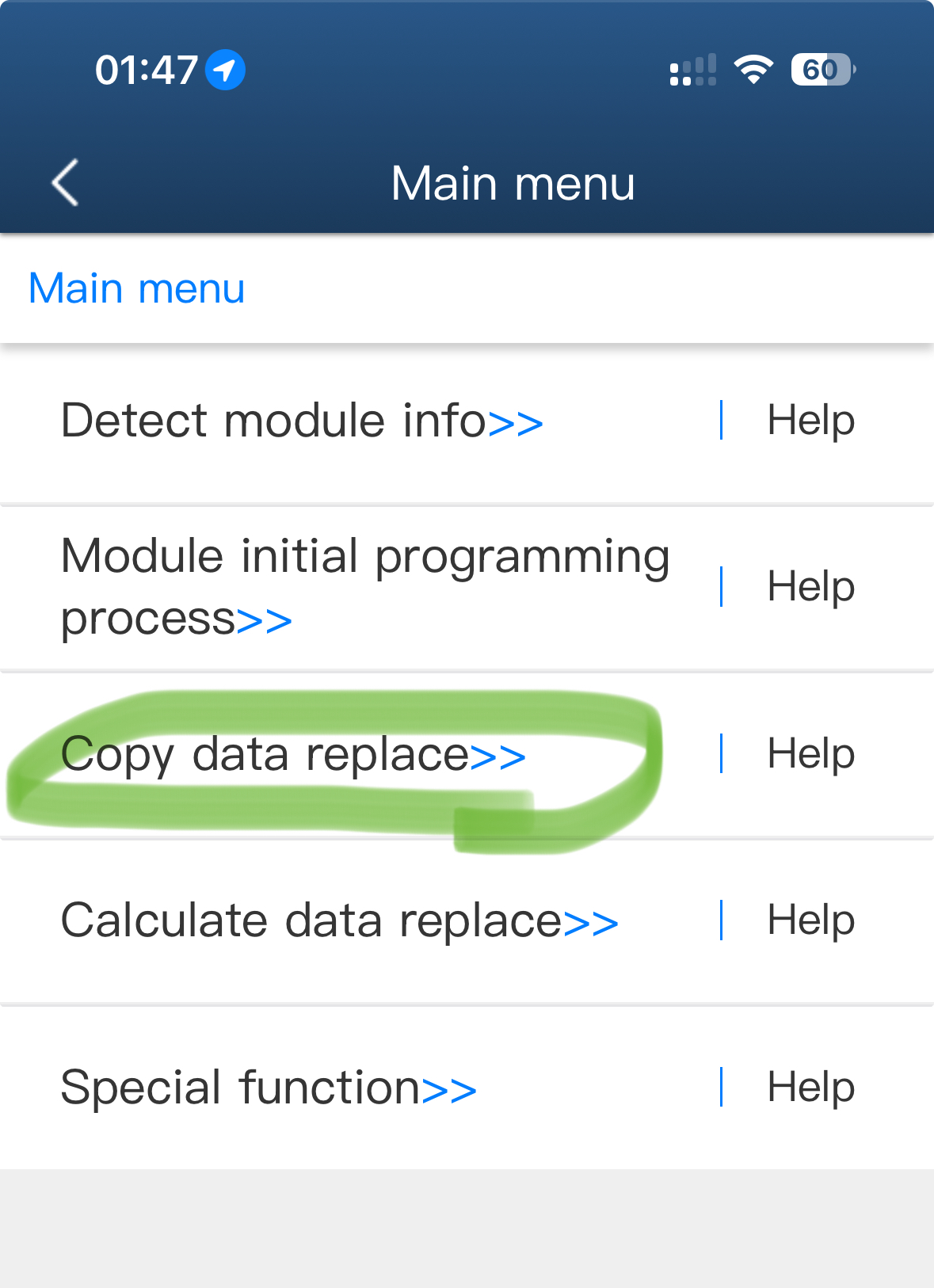

Step 3 Copy date replace

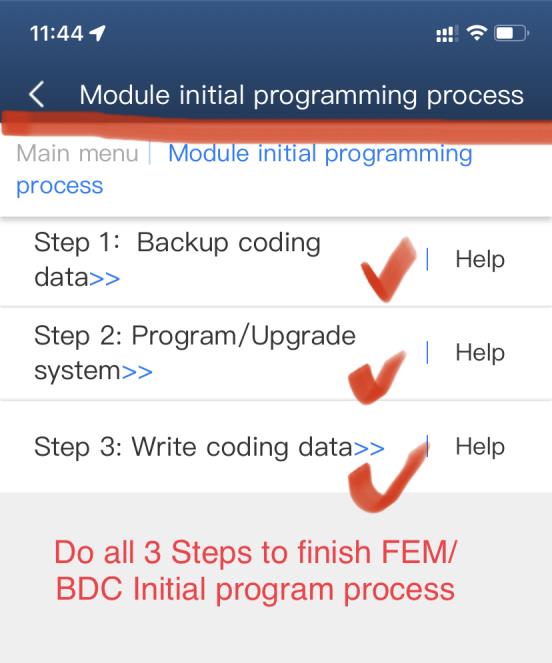

On both original and Donor FEM/BDC Module all need
to do Module initial programing process
After finishing initial program process , Do Backup old
Module date on original FEM/BDC Module
After backup original FEM/BDC Module , do the following step on secondhand FEM/BDC Module

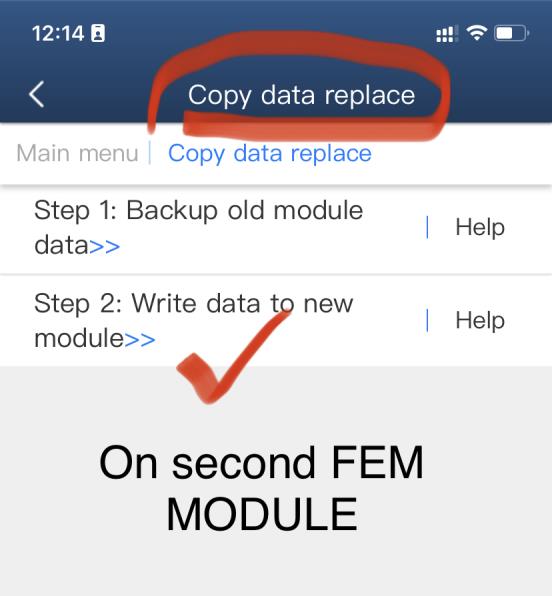

After finishing initial program process , do Write date
to New Module on second-hand FEM/BDC Module
Copy data replay FEM/BDC Module finish . this way only works for the situation that original FEM/BDC still can be read, and data is good . after copy data replace ,original car key still working good as before
The second situation is
Original FEM/BDC is damage cannot be read anymore ,or module data is corrupt. Then we need to process calculate copy repalce menu
Video https://youtu.be/iKzJhag5g_c?feature=shared
First ,READ ISN from vehicle DME and prepare CAR VIN.
And then on Second-hand FEM/BDC
Step1, Detect Secondhand FEM/BDC information . Take screenshot of all information

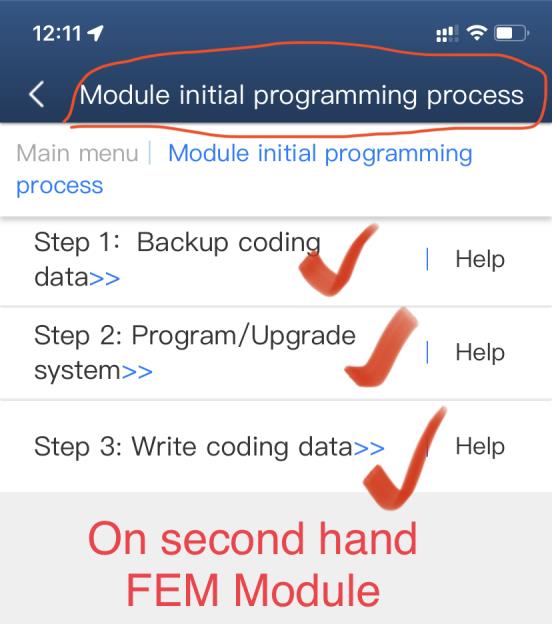

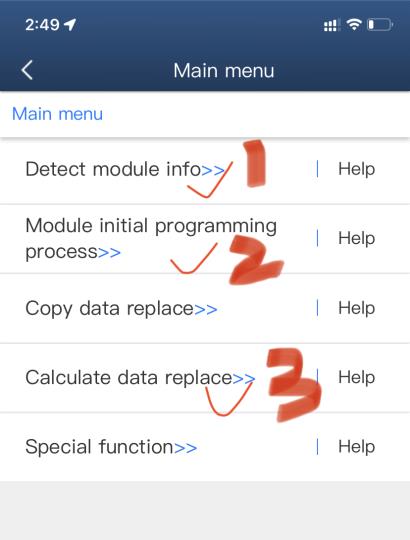

On Secondhand FEM/BDC Module do the following 3 steps to finish Module initial programing process

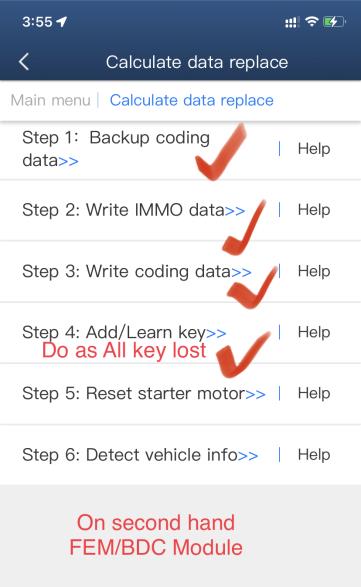

Do Step 1,2,3 to finish calculating data on Secondhand FEM/BDC Module . Enter DME ISN and VIN as APP prompt. After calculate copy data, original key cannot be used anymore ,and need to do steps 4 as all keys lost with DME ISN.
After finish Step4 , install FEM/BDC Module on car , and check car with new key working good or not , if not working well ,need to use E-sys or other coding tool to program .
here is the feedback after clone FEM Module
